Remarks:
To overcome feeding issues with the 350 Legend, I changed the buffer to an H1 and installed a Wolff Extra Power Carbine Buffer Spring and have had no further problems.
Objective:
For this setup, my goal is to develop a hunting load that is effective up to 150 yards. With this bullet, I need to achieve a MV of at least 2,115 fps to ensure the bullet will deliver at least 1,000 ft/lbs of energy at 150 yards. With this load work up, I’m looking for the most accurate load that achieves the desired MV
Conditions:
- Date: 4/13/22
- Temperature: 80F
Firearm:
- Barrel: Faxon Gunner 12.5” 1:16 Twist
- Upper: Aero Precision XL
- Lower: Ruger
- Lower Parts: CMMG
- Trigger: Ruger Elite 452
Components:
- Bullet: Hornady 170 gr SP – G1 B.C.: 0.215
- Powder: Hodgdon H-110
- Primer: CCI #400
- Brass: Winchester
- Dies: Lee Pacesetter 3-die set and Lee Factory Crimp Die
- Chronograph: Caldwell Ballistic Precision
Measurements:
- Case Trim Length: 1.700
- C.O.L.: 2.245
- C.B.T.O: 1.725
Load / Model Data:

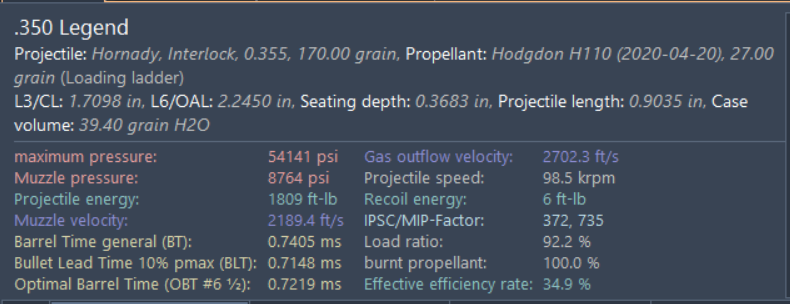

- Gordons Reloading Tool Data

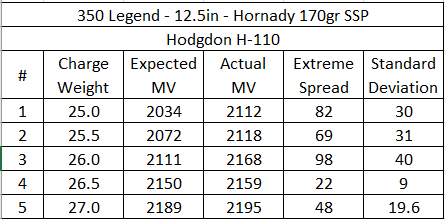

- Charge Data

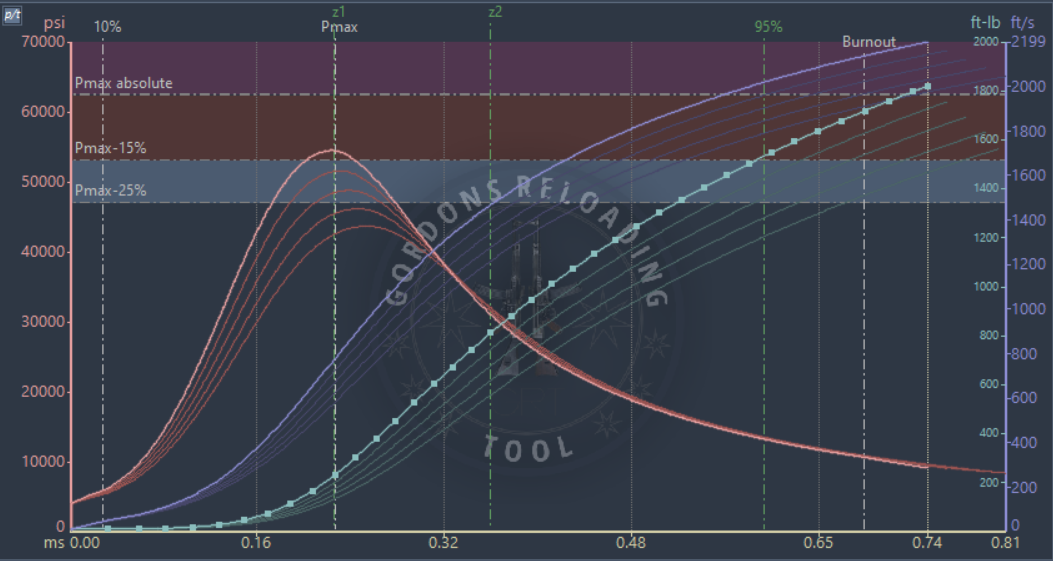

- GRT Pressure Curve

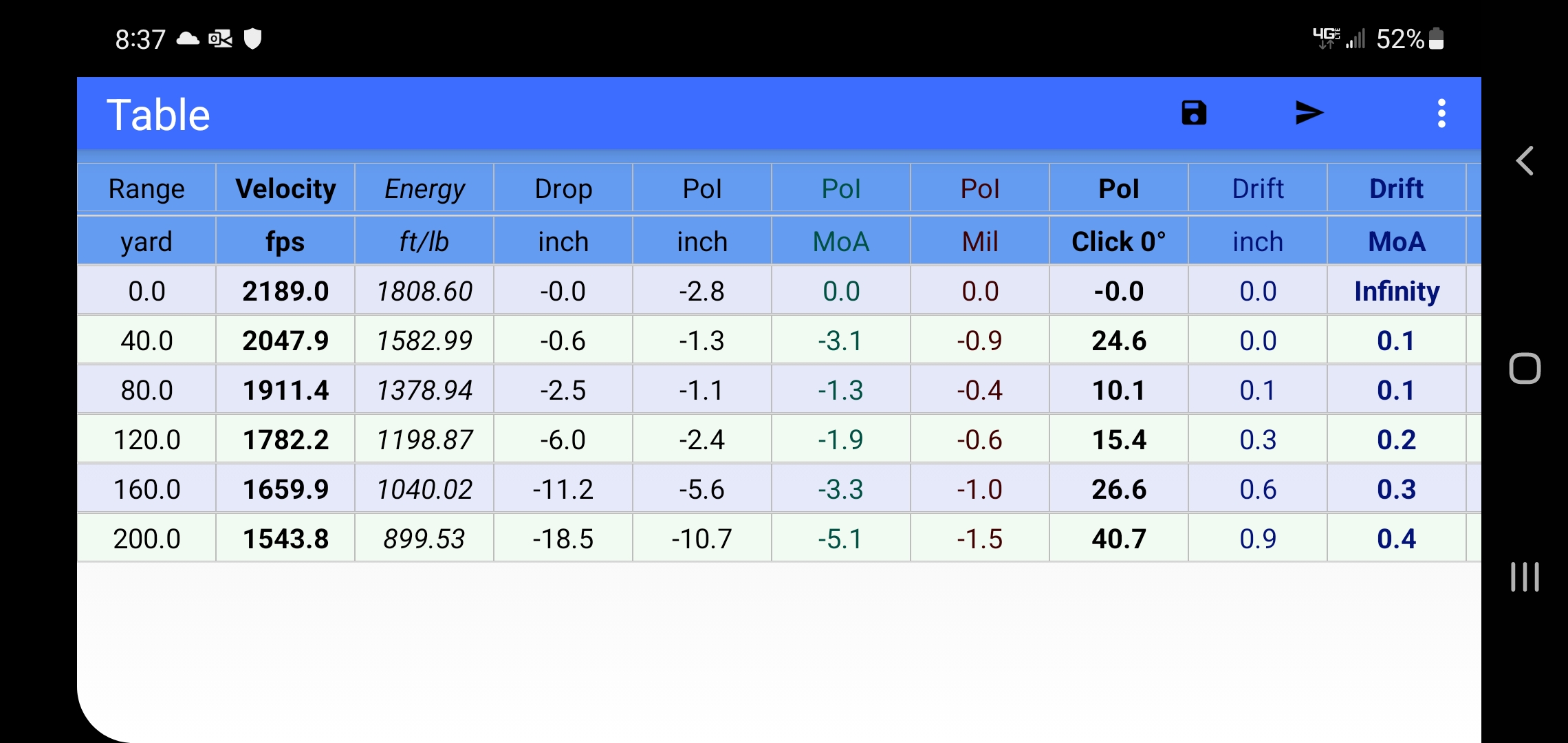

- Expected Ballistics Table

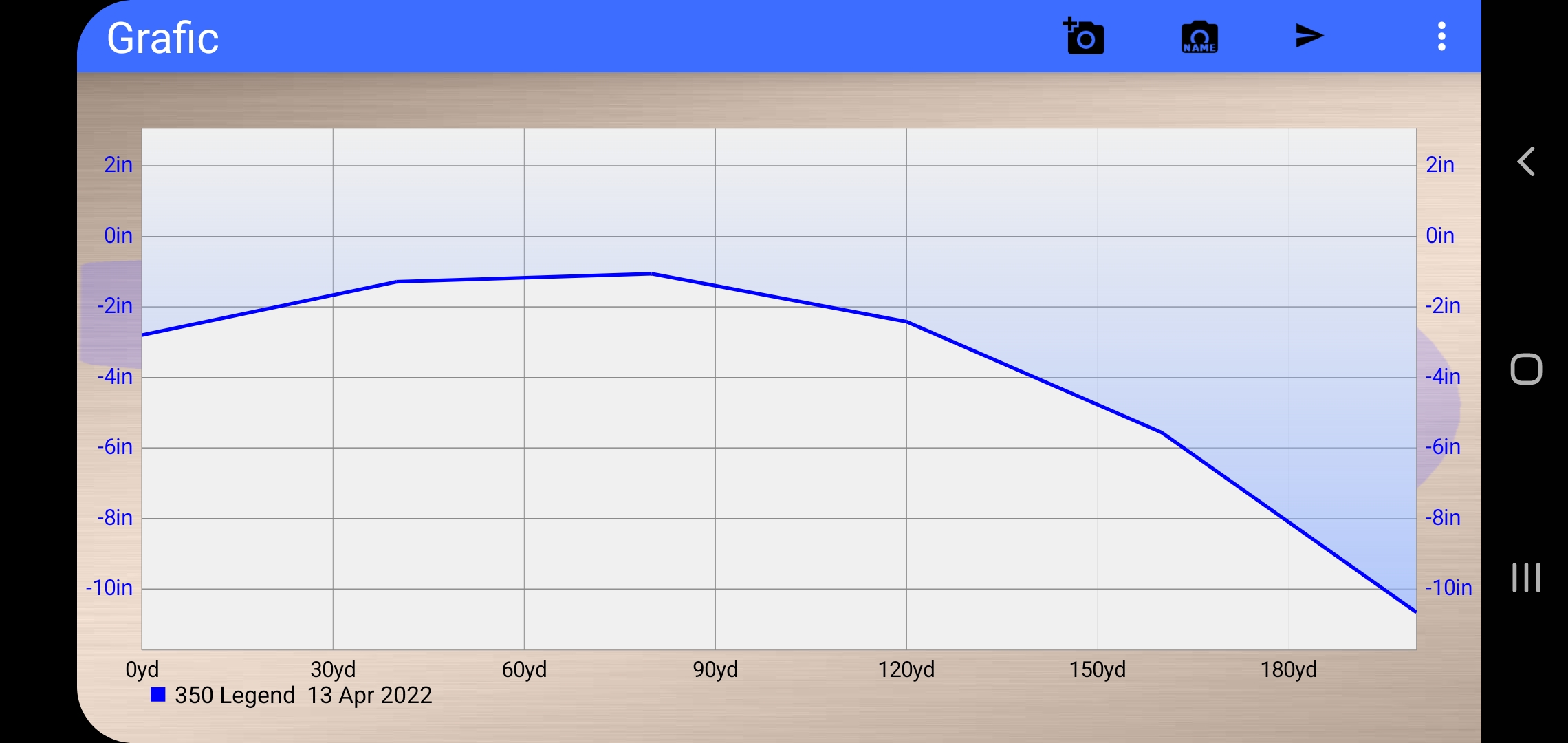

- Expected Bullet Drop
Results:

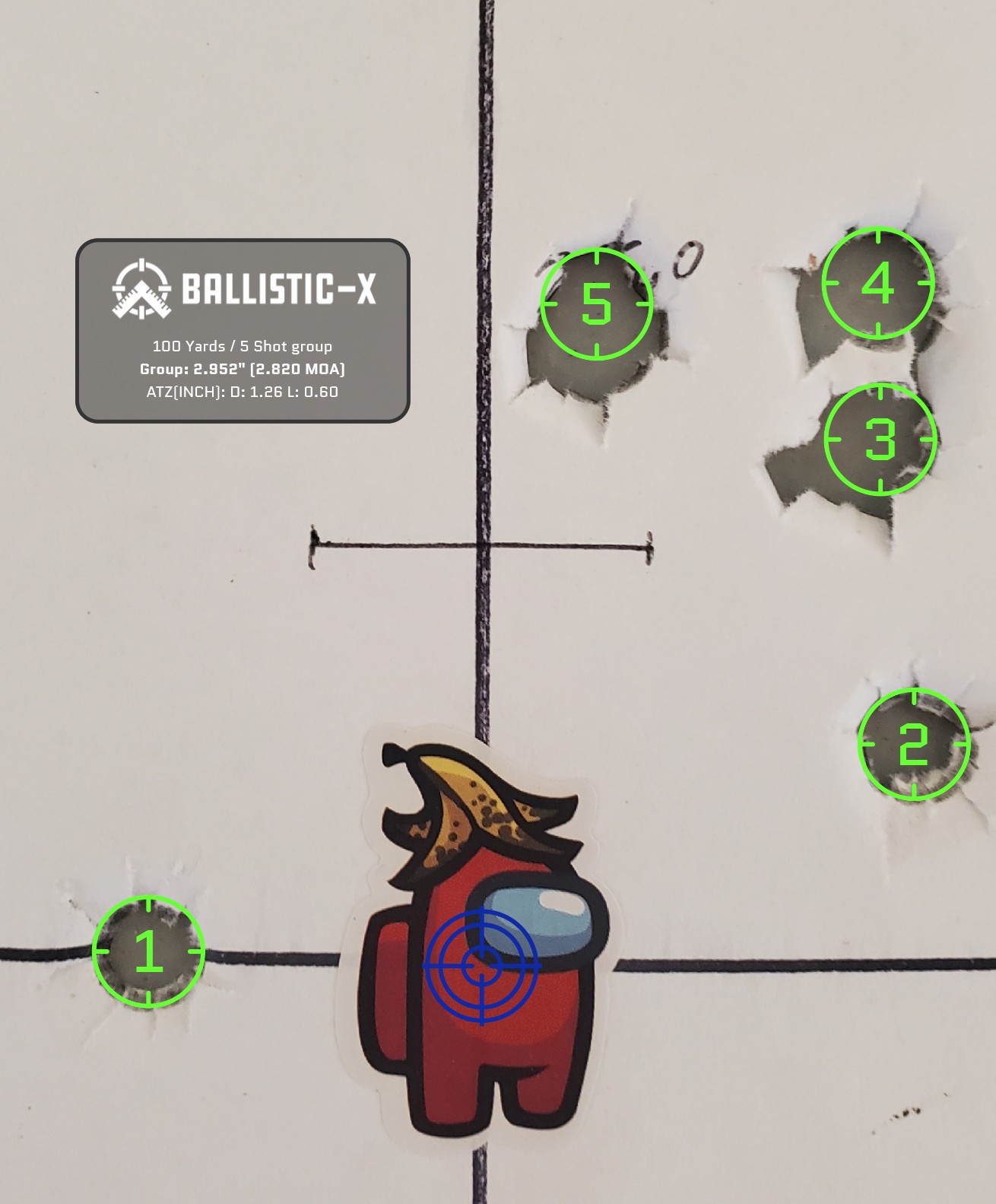

- 25.0 Grains

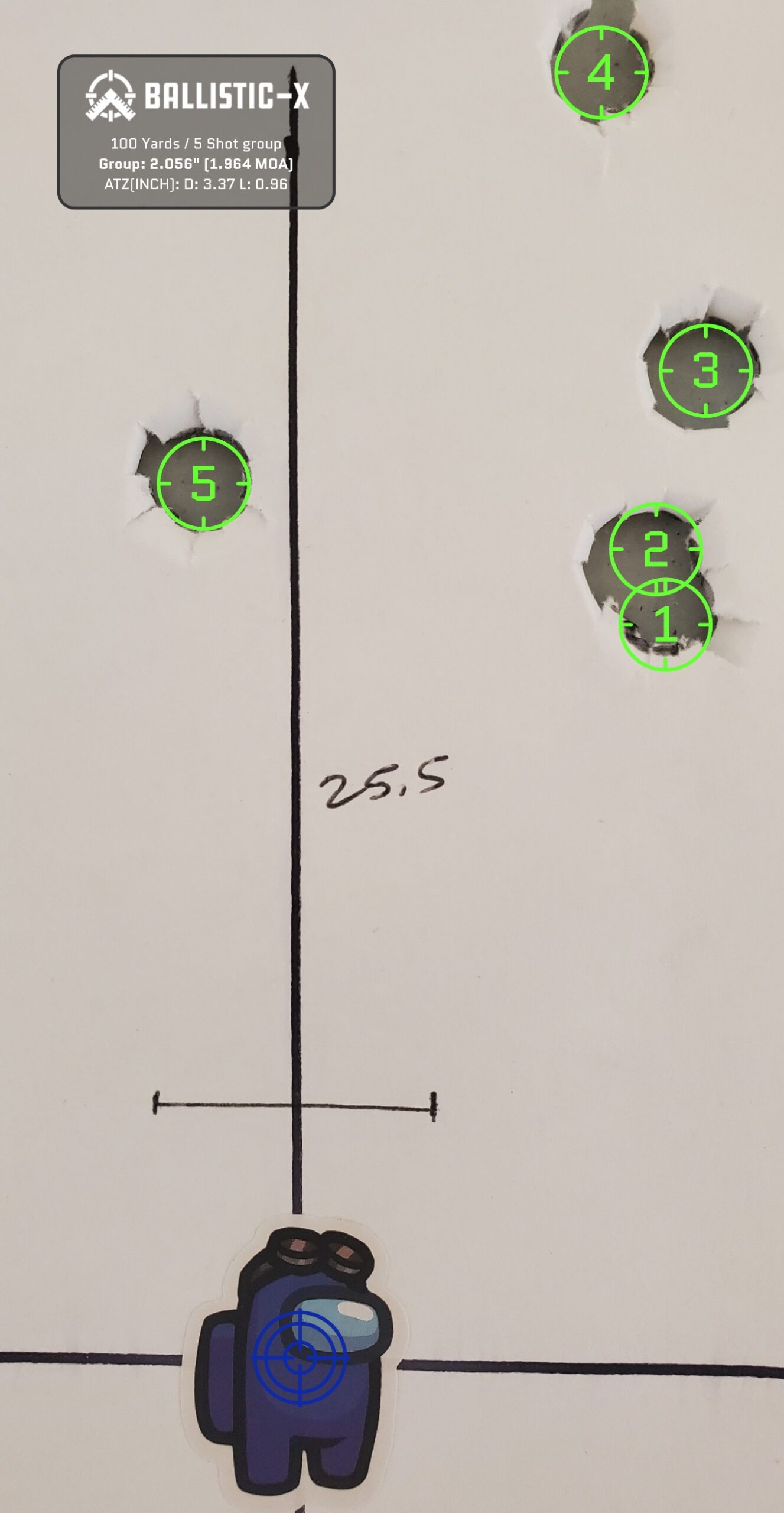

- 25.5 Grains (This is the load I would use)

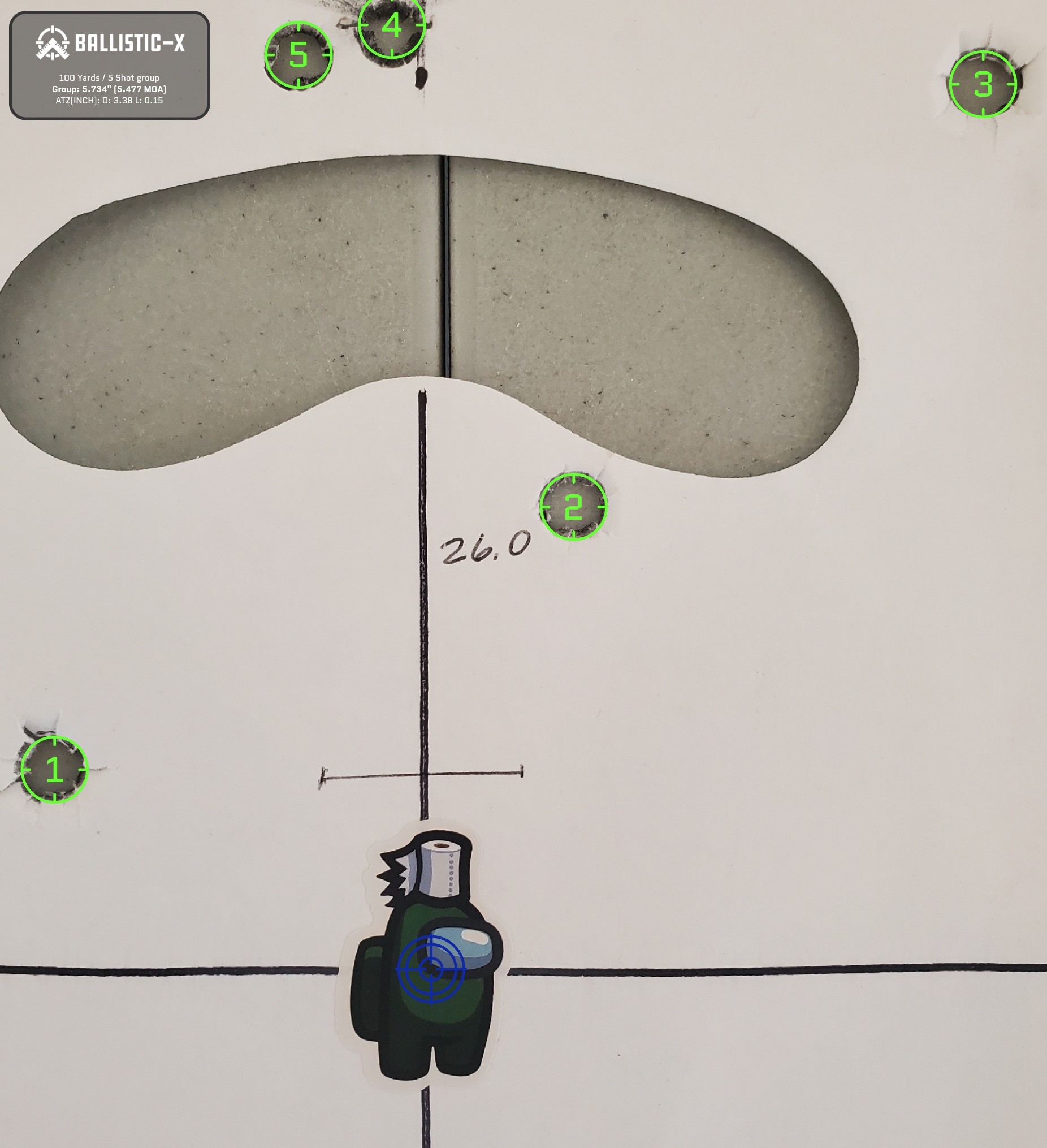

- 26.0 Grains

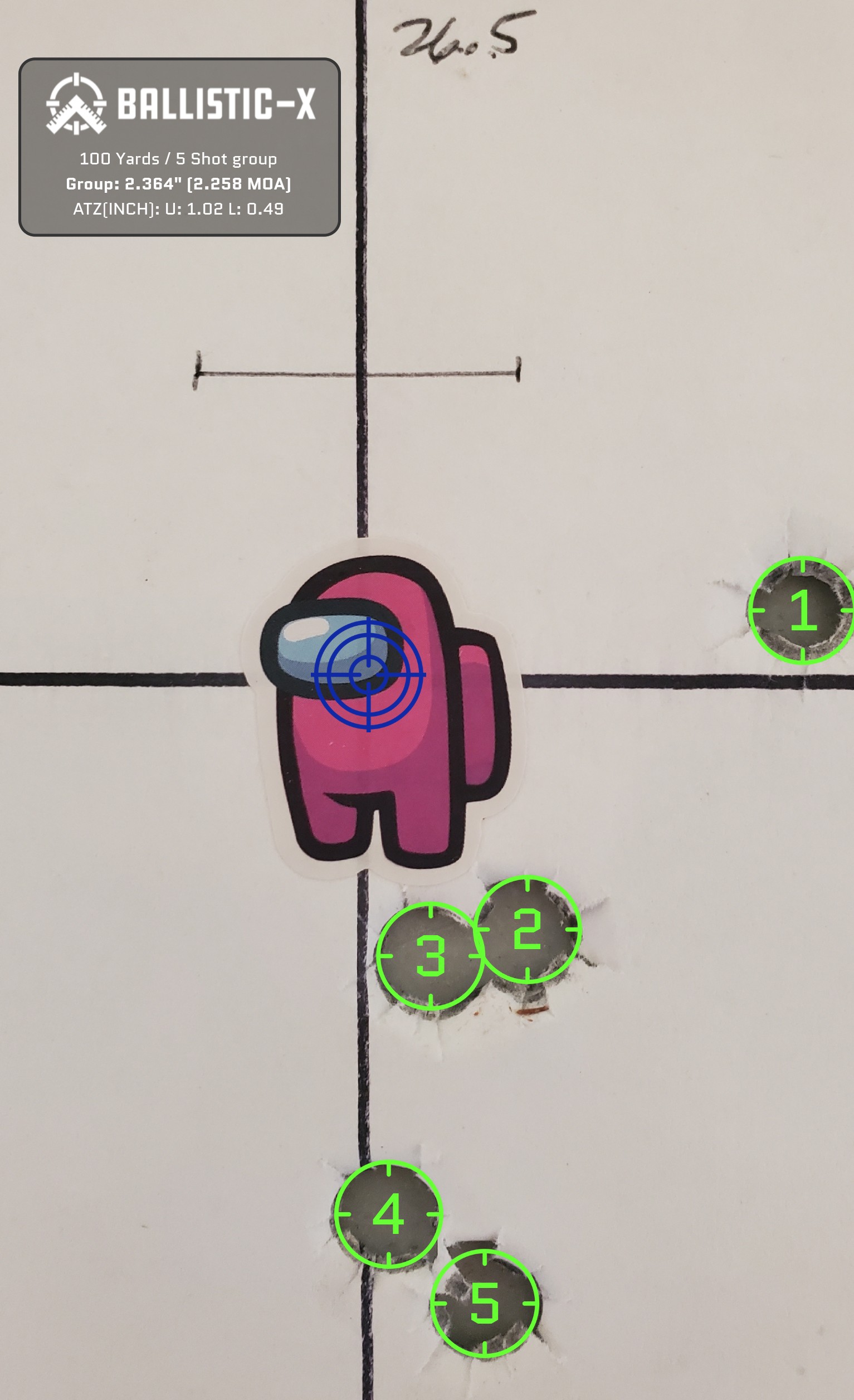

- 26.5 Grains
- 27.0 Grains

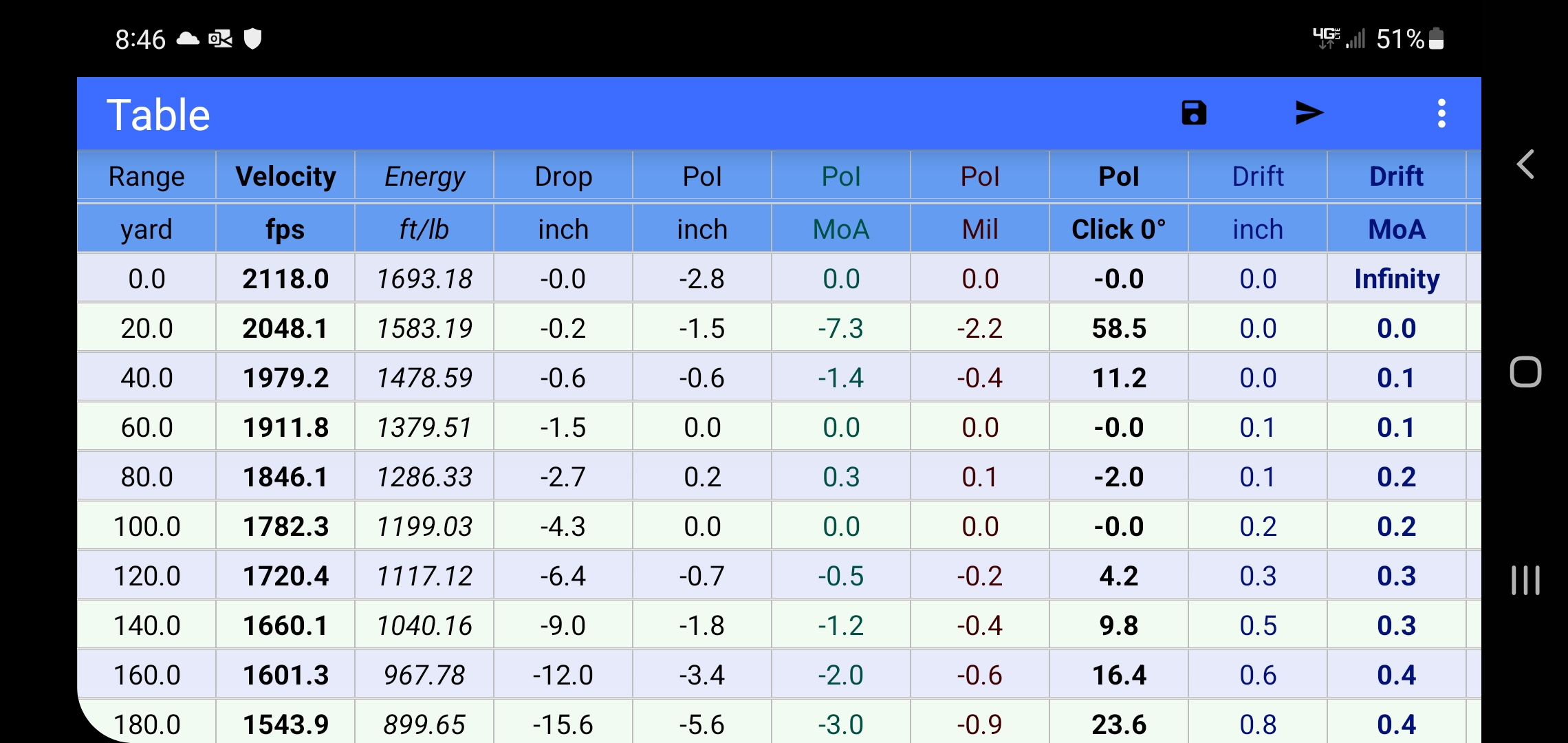

- Optimal Ballistics Table

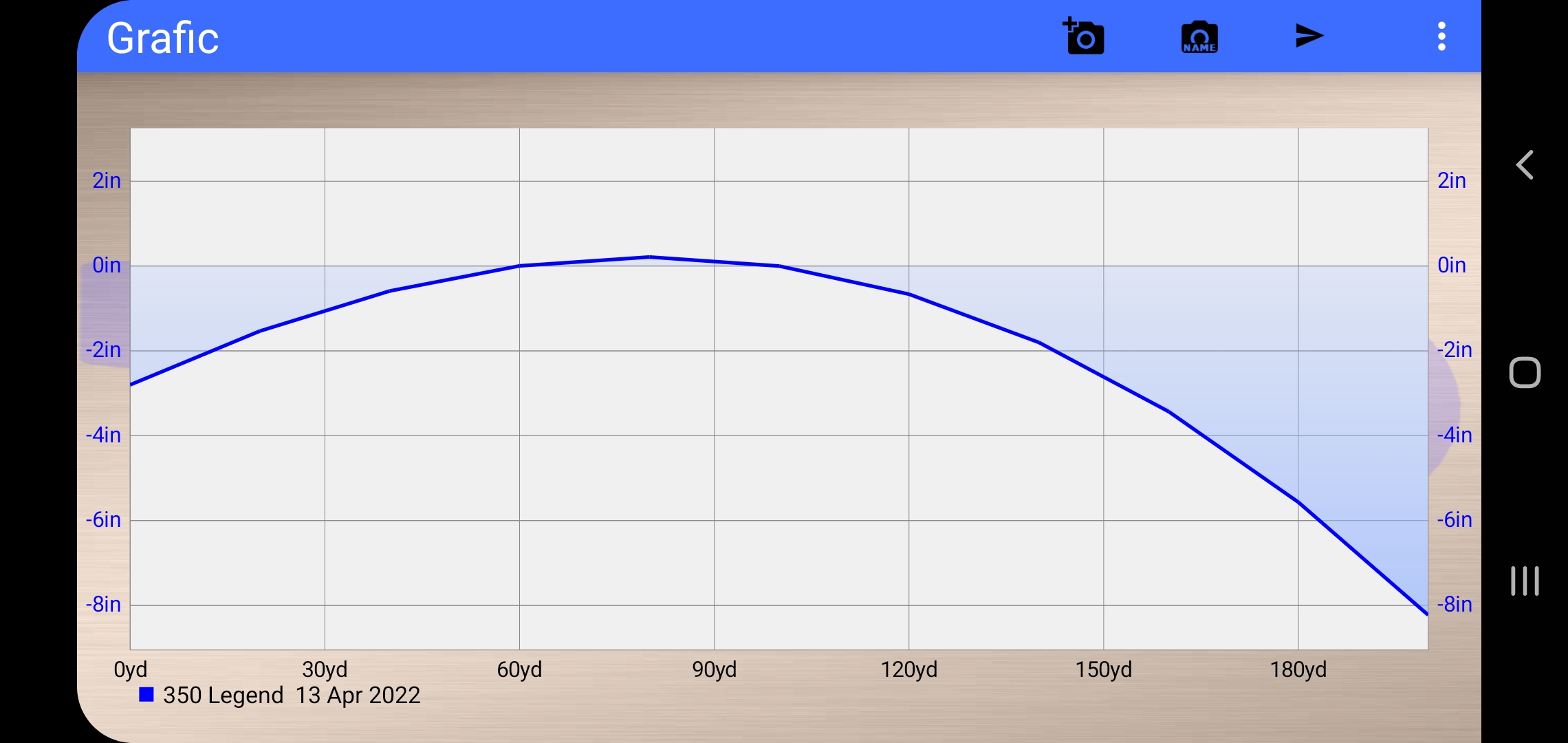

- Optimal Bullet Drop
Summary:
At the highest charge weight, this load is getting a little hot. The factory Hornady 170gr SSP ammo has an average MV of 2,078 fps out of my gun. Since I was able to achieve desired velocities out of a lower charge with workable accuracy, I would load the 25.5 grains.
